Product Details:
Payment & Shipping Terms:
|
| Brand Name: | DI-AO Cantilever Rack | Surface Treatment: | Powder Coated/ Galvanized |
|---|---|---|---|
| Width: | 600-1500mm | Height: | 2000-6000mm |
| Single/Double Sides: | Double | Customized Sizes: | Yes |
| Base: | 200*120*2.2mm | Upright: | 200*60*2.2mm |
| Arm: | 50*125*600mm | Depth: | 15-3.0mm |
| High Light: | cantilever metal storage racks,cantilever metal rack,cantilever rack shelf |
||

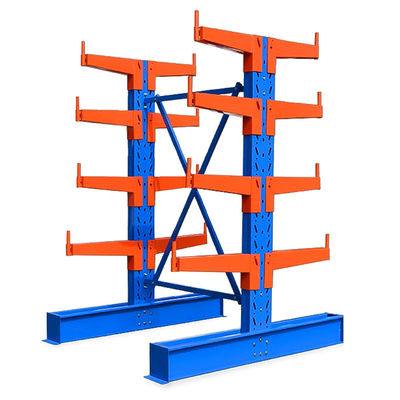

Single and Double Side Cantilever Shelf Manufacturers Warehouse Cantilever Shelf Warehouse Pipe Metal Special Bracket
Cantilever shelf is suitable for storing long materials, ring materials, plates, pipes and irregular goods. Cantilever shelf column is made of H section steel or cold rolled steel, cantilever adopts square tube, cantilever shelf uses cold rolled steel or H section steel, cantilever and column is inserted or bolted, bolt connection between the base and the column is used, the base is made of cold rolled steel or H section steel. Cargo access by forklift, truck or manual. The shelf height is usually less than 2.5 meters (up to 6 meters if the goods are accessed by forklift), the length of the cantilever is less than 1.5 meters, and the load per arm is usually less than 1000KG. This kind of shelf is used in machinery manufacturing industry and building materials supermarket. After adding the shelf, especially suitable for small space, low height warehouse, convenient management, wide vision, compared with ordinary shelf shelf, higher utilization rate; According to the bearing capacity can be divided into light type, medium type, weight type three.
Cantilevered shelves are the ideal solution for storing bulky, scattered or otherwise specialized products. Cantilever shelves are divided into one arm and two arms, efficient storage of wood, pipe, strip and other similar products. Cantilever shelf is equipped with external cantilever on the traditional shelf pillar, which is a special shelf for long objects.
Product Discrption
| Type | Item No. | Size | Base | Arm |
| Double Sides | DACR-001 | 1500x130 x2000mm | 200x120x2.2mm | 50*125*600mm |
| Load Capacity | Adjustable Pitch | Finish | Color | Custom Size |
| 500kg/Arm | 100mm | Powder Coated/Galvanized | As Request | Yes |
Application
Packing and Delivery
Packing Details: Plastic banding and stretch film wrapped,easy loading and unloading with forklift truck or pallet jack.
Delivery Times: 10-15 days for one 40'GP container after receiving advanced deposit or L/C.
1. Common Film+Plastic Banding 2. Air Bubble Film+Plastic Banding 3. Loading Container
Company Information
Nanjing Di Ao Storage Equipment Manufacturing Co., Ltd. Located in Nanjing city, Jiangsu Province. We
are a professional manufacturer specialized in offering warehouse solutions & materials handing equipment. Our
main products are Rack, Pallet, Wire Mesh Container, Wire Decking, etc. Our years-experienced professional team
of designers can provide you the best solution with the lowest cost.
FAQ
Q: What's the materials of your products?
A: Mild steel, Q235. Other materials you want is also OK.
Q: What is your packing details?
A: Plastic banding and stretch film wrapped,standard forklift truck or pallet jack used easily.
Q: What is the finish for your products?
A: Electro galvanized,hot dip galvanized,painting or powder coating.
Q: I would like to have my own design products, is that ok?
A: Yes, we will be happy to go with your design, even though your order quantity is small.
Q: What is the average production lead time?
A: Generally 2-4 weeks after your advanced deposit.
Q: How to get guarantee if buy your products?
A: Generally our products warranty is for 2 years, but actually our products can be used over 8 years for proper
handing.
Q: How can you guarantee the production quality ?
A: We have 15 years experience of QC team. We have strictly quality control system in our production process.
We have 4 times inspection for each finished product before package, Third part inspection acceptable
