| Depth: | 1.5-3.0mm | Width: | 600-1800mm |
|---|---|---|---|
| Height: | Selective | Adjustable Pitch: | 75mm |
| Color: | Blue/Orange/As Request | Development: | Conventional |
| Weight: | Heavy Duty | Certificates: | ISO9001/14001/10012/CE |
| Surface Treatment: | Electrostatic Power Coating | Origin: | Jiangsu,China |
| High Light: | warehouse racking beams Q235,structural pallet rack beams,9' pallet rack beams |
||

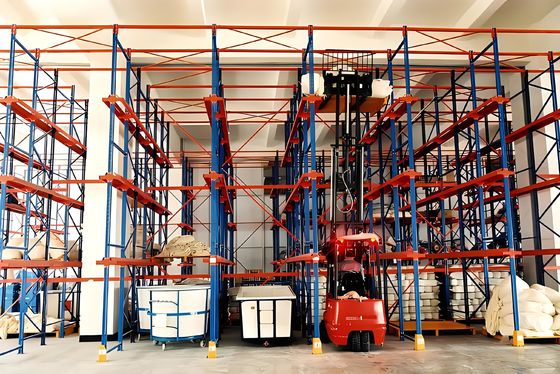

Fifo Customized Industrial Warehouse Heavy-Duty Pallet Beam Frame Q235 Steel Metal Storage Drive-in Rack
A low cost, versatile solution for high density pallet storage
Drive In Pallet Racking is the most popular form of high-density pallet racking, designed for storing large quantities of the same product and to ensure optimal performance at the lowest cost per footprint.
By using ledges instead of beams, forklifts are able to drive into the empty rack locations, which makes the storage of multi-deep pallets possible and eliminates aisles, allowing for remarkably dense storage.
This is a great solution for situations where selectivity isn't a necessity; perfect for businesses with few SKU's but large volumes of each. Providing excellent storage capacity, Drive In Pallet Racking works on the last pallet in, first pallet out (LIFO) principle making it ideal for imperishable items.
Product Description
| Upright specification | Beam specification |
| 90x70/100x70/120x95mm Thickness :1.8/ 2.0/2.5mm |
80x50/100x50/120x50/140x50/160x50mm 100x40/120x40/140x40/160x40mm Thickness :1.5mm |
| Steel grade : Q235 /Q345 , material certification available | |
| Color code: RAL5015 blue -upright / RAL2004 orange- beam | |
| Loading capacity : up to UDL 3000kg/layer | |
| Surface finishing : powder coated / galvanized | |
| BOX BEAM LOADING TABLE | ||||||||||
| Beam length (mm) | 80*50*1.5 | 100*40*1.5 | 100*50*1.5 | 110*50*1.5 | 120*40*1.5 | 120*50*1.5 | 140*40*1.4 | 140*50*1.5 | 160*40*1.5 | 160*50*1.5 |
| 1500 | 4286 | |||||||||
| 1800 | 2977 | |||||||||
| 1900 | 2672 | 3809 | 4535 | |||||||
| 2200 | 1993 | 2841 | 3382 | 4219 | ||||||
| 2300 | 1823 | 2599 | 3095 | 3860 | 3918 | 4665 | ||||
| 2400 | 1674 | 2387 | 2842 | 3545 | 3598 | 4284 | ||||
| 2500 | 1403 | 2000 | 2381 | 2970 | 3014 | 3598 | 4340 | 5160 | ||
| 2600 | 1297 | 1849 | 2201 | 2745 | 2787 | 3318 | 4010 | 4771 | ||
| 2700 | 1203 | 1715 | 2041 | 2546 | 2584 | 3077 | 3716 | 4425 | 5068 | 6033 |
| 3000 | 974 | 1389 | 1655 | 2065 | 2093 | 2492 | 3010 | 3585 | 4105 | 4887 |
| 3300 | 708 | 1010 | 1202 | 1500 | 1522 | 1812 | 2189 | 2610 | 2985 | 3555 |
| 3600 | 600 | 849 | 1010 | 1260 | 1279 | 1523 | 1839 | 2190 | 2508 | 2986 |
| 3800 | 540 | 762 | 907 | 1135 | 1148 | 1369 | 1658 | 1965 | 2251 | 2680 |
| 4000 | 485 | 687 | 818 | 1024 | 1036 | 1235 | 1550 | 1774 | 2032 | 2419 |
Production Workshop
Company Information
Nanjing Di Ao Storage Equipment Manufacturing Co., Ltd. Located in Nanjing city, Jiangsu Province. We
are a professional manufacturer specialized in offering warehouse solutions & materials handing equipment. Our
main products are Rack, Pallet, Wire Mesh Container, Wire Decking, etc. Our years-experienced professional team
of designers can provide you the best solution with the lowest cost.
Our advantages:
1. More than 10 years factory experience, ensure good quality for product;
2. An excellent team of solution, consultant 24/7 on line. Personal communication, team support one-stop service;
3. Factory direct product, supply customized design, offer professional technicians team;
4. Professional QC team, from raw materials to loading, multiple inspection, offering inspection report;
5. Over 200 workers, 10 sets of rolling line, 100 more sets of equipment, and a yearly production capacity of
25,000 tons can ensure the delivery on time
FAQ
Q: What's the materials of your products?
A: Mild steel, Q235. Other materials you want is also OK.
Q: What is your packing details?
A: Plastic banding and stretch film wrapped,standard forklift truck or pallet jack used easily.
Q: What is the finish for your products?
A: Electro galvanized,hot dip galvanized,painting or powder coating.
Q: I would like to have my own design products, is that ok?
A: Yes, we will be happy to go with your design, even though your order quantity is small.
Q: What is the average production lead time?
A: Generally 2-4 weeks after your advanced deposit.
Q: How to get guarantee if buy your products?
A:Generally our products warrantly is for 2 years,but actually our products can be used over 8 years for proper handing.
Q: How can you guarantee the production quality ?
A:We have 15years experience of QC team.We have strictly quality control system in our production process.
We have 4 times inspection for each finished product before package.Third part inspection acceptable.
Contact Person: Mr. Xiong
Tel: +086-13770328886
